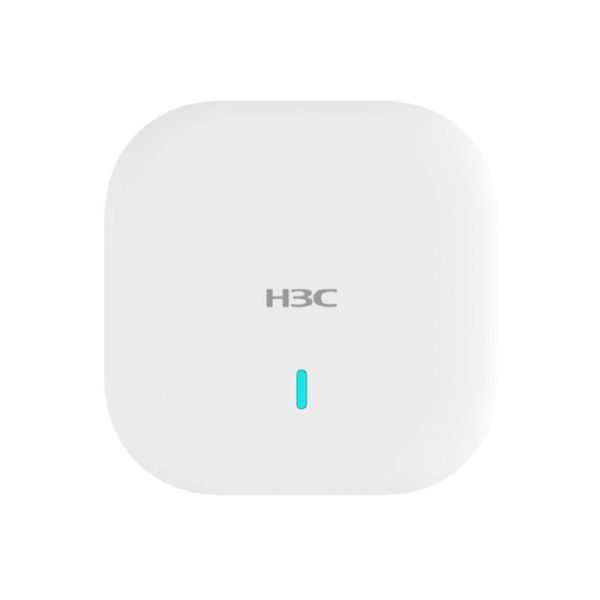

Name | WA6330 |
Weight(excluding mounting accessories) | 0.94Kg |
Dimensions(excluding mounting and accessories) | 210mm×210mm×45mm |
Ethernet ports | Two(one for 100/1000M/2.5G Rj45,one for 100/1000M Rj45 support IoT) |
support LACP(support between both network ports for redundancy and increased capacity) |
PoE | Port1: 2.5GE:802.3at/802.3af |
Port2: GE:PSE,802.3af |
Local Power supply | 54V DC |
Console port | One(RJ-45) |
Built-in antenna | Built-in omni-directional antenna |
Radio 1 : 5dBi antenna gain @ 5G |
Radio 2 : 5dBi antenna gain @ 5G |
Radio 3 : 5dBi antenna gain @ 2.4G or 5dBi antenna gain @ 5G |
Built-in Bluetooth | Built-in Bluetooth(Support to switch RFID through software), support iBeacon standard |
IoT Extension | Support BLE, RFID, ZigBee,etc. |
Working frequencies | 802.11ax/ac wave2/ac/n/a : 5.725GHz-5.850GHz ; 5.47~5.725GHz; 5.15~5.35GHz |
802.11ax/b/g/n : 2.4GHz-2.483GHz |
Modulation technology | OFDM : BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps |
DSSS :DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps(file://dbpsk@1mbps, dqpsk@2mbps, cck@5.5/11Mbps) |
MIMO-OFDM (11n): MCS 0-31 |
MIMO-OFDM (11ac): MCS 0-11 |
MIMO-OFDM (11ax): MCS 0-11 |
Modulation mode | 11b:DSS:CCK@5.5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps |
11a/g:OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps,BPSK@6/9Mbps |
11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM |
11ac:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM |
11ax: MIMO-OFDM: BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM |
Maximum transmit power | 20 dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
Adjustable power granularity | 1dBm |
Reset/restoration to factory default | Supported |
State LED | Alternating flashing mode, orange/green/blue for different working states, breathing mode |
Working Temperature/Storage Temperature | - 10ºC~55ºC(32°F to 113°F)/-40ºC~70ºC(–40°F to +158°F) |
Working Humidity/Storage Humidity | 5%~95%(non-condensing) |
Protection class | IP42 |
Overall power consumption | ≤34W(excluding IoT modules) |
Safety compliance | GB4943, EN60601-1-2(medical electrical equipment), UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22 |
EMC | GB9254, EN301 489, EN55022, FCC Part 15, RSS-210 |
Radio frequency certification | FCC Part 15, EN 300 328, EN 301 893 and MIIT SRRC |
Health | FCC Bulletin OET-65C, EN 50385, IC Safety Code 6 |
MTBF | >250000H |
