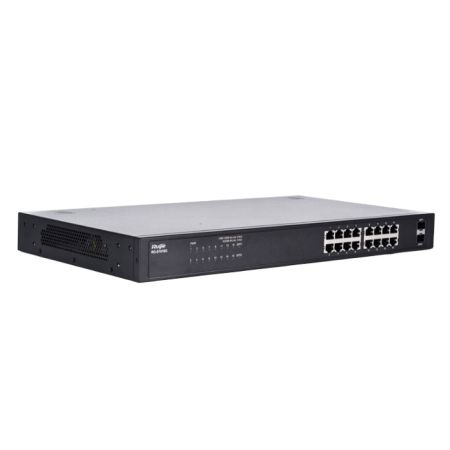

16-Port 10/100Mbps PoE + 2-Port Gigabit Combo Unmanaged Switch RUIJIE RG-ES118S-LP
- Support 16 x 10/100Mbps PoE/PoE+ Ports and 2 x 10/100/1000Mbps combo ports.
- Switching capacity: 7.2Gbps.
- Package forwarding rate: 5.36Mpps.
- Power supply: 100-240V AC.
- Power consumption: 148W.
- PoE power budget: 120W.
Specifications
| Ports | 16 x 10/100 Mbps PoE/PoE+ Ports
2 x 10/100/1000 Mbps uplink ports |
| Operating mode | Half-duplex, full-duplex, auto-negotiation mode
Support auto MDI/MDIX |
| Switching capacity | 7.2Gbps |
| Package forwarding rate | 5.36Mpps |
| Power supply | 100-240V AC |
| Surge protection | Switch-mode power supply:
Common mode: ±6 kV
Differential mode: ±6 kV
Network ports:
Non-PoE ports: ±4 kV
PoE ports: ±6 kV |
| Port Mode | “Flow Control On”
“Flow Control Off”
“Port Isolation”
from left to right |
| Power consumption | 148W |
| PoE power budget | 120W |
| Dimensions (W x D x H) | 440 x 208 x 44 mm |
| Operating temperature | 0℃ to 45℃ |
| Storage temperature | -40℃ to 70℃ |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |
- Bảo hành: 3 năm.
