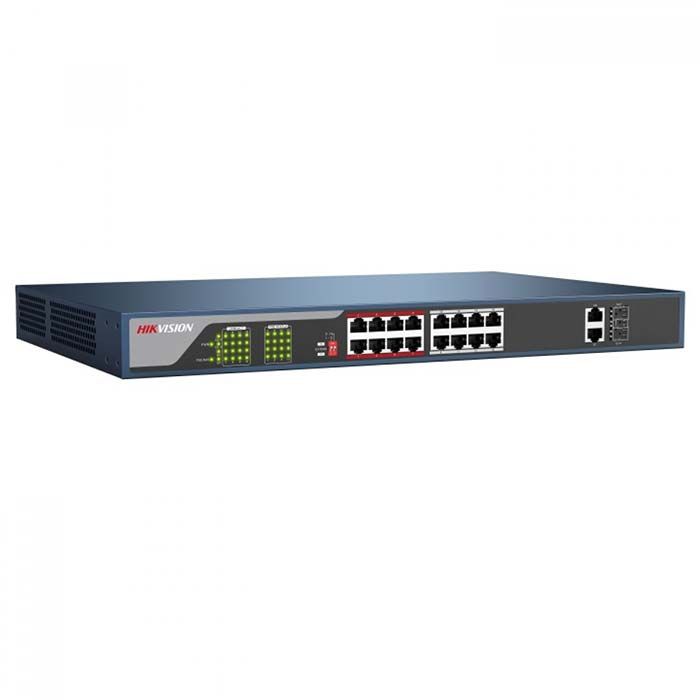

16 Port Fast Ethernet Smart PoE Switch HIKVISION DS-3E1318P-EI/M
- 16 × 10/100Mbps PoE port, 1 × Gigabit combo, 1 × Gigabit RJ45 port.
- IEEE 802.3at/af standard for PoE ports.
- Network topology management, alarm push, network health monitor.
- 6KV surge protection for PoE ports.
- AF/AT camera can reach up to 300m in extend mode.
Thông số kỹ thuật
| Network Parameters |
| Port Type | RJ45 port,full duplex,MDIMDI-X adaptive |
| Standard | IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z |
| Ports | 16 × 10/100 Mbps PoE port,1 × Gigabit combo,1 × Gigabit RJ45 port |
| High Priority Ports | Ports 1 to 8 |
| Forwarding Mode | Store-and-forward switching |
| Working Mode | Standard mode (default),Extend mode |
| MAC Address Table | 16 K |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| Internal Cache | 4 Mbits |
| PoE Power Supply |
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 16 |
| Max. Port Power | 30 W |
| PoE Power Budget | 130 W |
| Software Function |
| Device Maintenance | Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization. |
| General |
| Shell | Metal material |
| Weight | 1.8 kg |
| Dimensions (W × H × D) | 335.00 mm × 44.50 mm × 226.00 mm |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100-240 VAC, 50/60 Hz, Max. 2.5 A |
| Max. Power Consumption | 150 W |
| Approval |
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES003: Issue 6, 2016) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006) |
- Bảo hành: 24 tháng.
