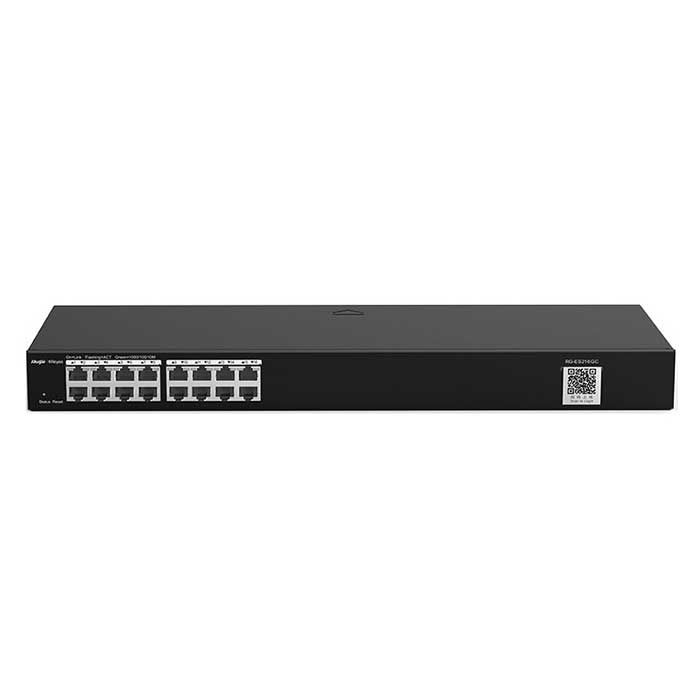

Layer 2 Smart Managed Switch 18 Cổng 10/100/1000BASE-T
- 16 cổng 10/100/1000BASE-T
- Tốc độ chuyển mạch: 32Gbps
- MAC: 8K
- Tính năng Layer 2: port mirroring, loop protection, cable detection
- Tính năng bảo mật: broadcast storm suppression, port speed limit, port isolation
- Chống sét: 6KV
- Kích thước: 440x165x44mm, rack 19 inch
- Nhiệt độ hoạt động: 0°C~50°C
- Dễ dàng quản lý và cấu hình qua Ruijie cloud
- Tích hợp Web management
- Nguồn AC 100~240V, 50/60Hz
- Hỗ trợ IEEE802.1Q VLAN, bảo mật giữa các nhóm thiết bị
- Bảo hành 3 năm
| Model | RG-ES216GC |
| Hardware |
| Ports | 16 10/100/1000Base-T ports |
| Switching capacity | 32Gbps |
| Package forwarding rate | 24Mpps |
| Surge protection | Common mode: 6KV |
| Power consumption | <12W |
| Power supply | Built-in power supply |
| Dimensions (W x D x H) | 440 x 165 x 44 mm |
| MTBF | >200K |
| Software |
| MAC capacity | 8K |
| Static MAC address | 16 |
| VLAN | Support 802.1Q VLAN |
| Port management | Support port status display, port traffic statistics, port duplex / negotiation rate configuration, flow control configuration |
| Security | Support broadcast storm suppression, port speed limit, port isolation, DHCP Snooping |
| L2 features | Support port mirroring, loop protection, cable detection |
| Management | Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud |
| Operating environment |
| Operating temperature | 0 to 50°C |
| Storage temperature | -40~70ºC |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |
