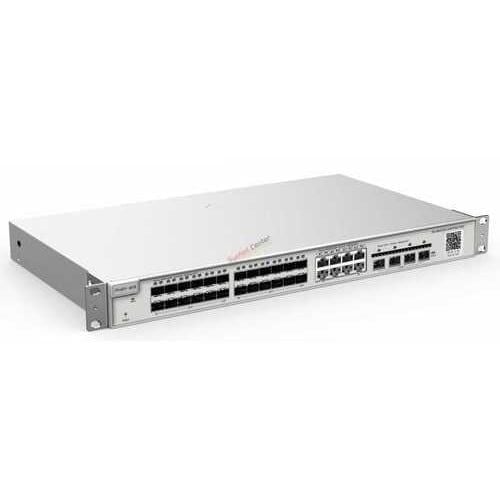

Layer 2 Smart Managed Switch 24 Cổng quang SFP
- 24 SFP 100/1000M, 8 cổng 10/100/1000BASE-T
- 4 cổng SFP+ 10Gbps BASE-X
- Tốc độ chuyển mạch: 336Gbps, 96Mpps
- MAC: 16K, VLAN: 4094
- Tính năng Layer 2: port mirroring, loop protection, cable detection
- Tính năng bảo mật: broadcast storm suppression, port speed limit, port isolation
- Kích thước: 440×267.5×43.6mm
- Nhiệt độ hoạt động: 0°C~50°C
- Dễ dàng quản lý và cấu hình qua Ruijie cloud
- Tích hợp Web management
- Nguồn AC 100~240V, 50/60Hz
- Hỗ trợ IEEE802.1Q VLAN, bảo mật giữa các nhóm thiết bị
- Bảo hành 3 năm
| Model | RG-NBS3200-24SFP/8GT4XS |
| Ports | 24 SFP ports (SFP: 100/1000M ports), 8 combo 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 96Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 16K |
| Number of VLANs | 4094 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| ACL | IP standard ACL
MAC extended ACL
IP extended ACL
Port ACL for Layer 2 ports (physical port / AP) |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection
Hardware CPP |
| Management | Web management, Ruijie Cloud or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Dimensions | 440×267.5×43.6mm |
| Temperature | Operating temperature: 0℃ ~ 50℃
Storage temperature: -40℃ ~ 70℃ |
| Humidity | Operating humidity: 10% ~ 90% RH
Storage humidity: 5% ~ 90% RH |
