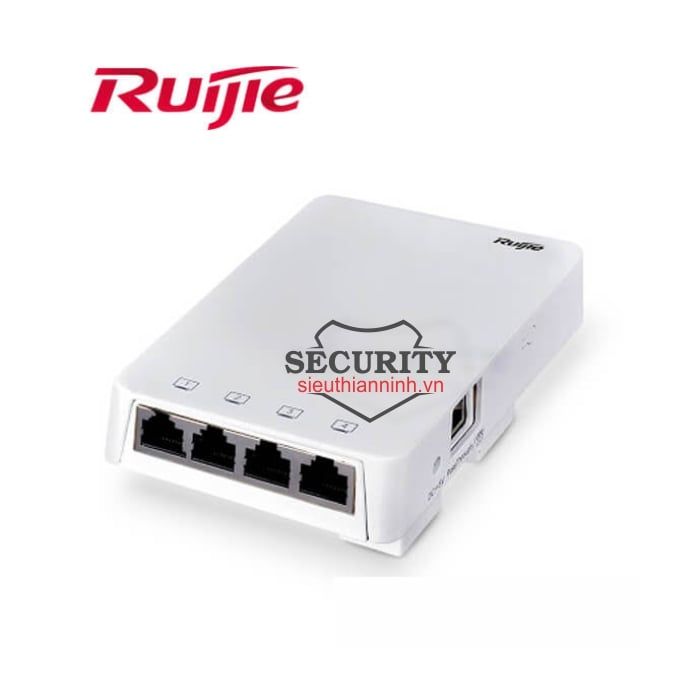

Model | RG-AP130(W2) V2 |
Target Deployments | For wireless deployment in hotels, offices, residential buildings |
Basic Specifications |
Radio | Concurrent dual-radio dual-band |
Protocol | 802.11a/b/g/n/ac |
Operating Bands | 2.4GHz and 5GHz |
Antenna | Built-in omnidirectional antenna (Base gain 3.5dBi) 2×2 MIMO |
Max Throughput | 1.167Gbps |
Spatial Streams | 2 |
IP Rating | IP41 |
Service Port | 4 10/100/1000M Ethernet ports 1 10/100/1000M uplink port |
Power Supply | PoE (802.3af) |
Power Consumption | <8W |
WLAN |
Maximum clients per AP | 32 |
BSSID capacity | 16 |
SSID hiding | Support |
Configuring the authentication mode. Encryption mechanism and VLAN attributes for each SSID | Support |
Remote Intelligent Perception Technology (RIPT) | Support |
Intelligent load balancing based on the number of users or traffic | Support |
STA control | SSID/radio-based |
Bandwidth control | STA/SSID/AP-based speed control |
Band Steering (5G Priority) | Support |
Dynamic Frequency Selection (DFS) | Future release support |
Bonjour | Support (Fit AP) |
Security |
PSK authentication | Support |
Web portal authentication (by Ruijie Cloud integration) | Support |
802.1x authentication | Support |
PPSK authentication | Support (Controller required) |
Data encryption | WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits) |
PEAP authentication | Support |
Data frame filtering | Whitelist, static/dynamic blacklist |
User isolation | Support |
Rogue AP detection and countermeasure | Support |
Standard & Extended IP & MAC ACL | Support |
RADIUS | Support |
CPU Protection Policy (CPP) | Support |
Wireless Intrusion Detection System (WIDS) | Support |
IPv4 address | Static IP address or DHCP |
IPv6 address | Static IP address or DHCP |
Screen Mirroring Isolation | Support (Fit AP) |
Multicast |
IGMP Snooping | Support |
Management and Maintenance |
Trunk Management (IEEE 802.1q) | Support |
Network management | SNMP v1/v2C/v3, Telnet, TFTP, FTP and Web management |
Fault detection and alarm | Support |
Cloud AC management | Support |
Statistics and logs | Support |
External Characteristics |
Lock | Anti-theft screws and ordinary screws |
LED Indicators | 1 LED status indicator |
Relevant Standard |
Wi-Fi Alliance Certification | Support |
Safety Standard | GB4943, EN/IEC 60950-1 |
EMC Standard | GB9254, EN301 489 |
Health Standard | EN 62311 |
Radio Standard | EN300 328, EN301 893 |
Vibration Standard | IEC60068-2-31, ETSI EN300 019, NEBS GR-63-CORE |
Others |
Dimensions (H x W x D) (mm) | 116 × 86 × 37.5 |
Weight | 0.19kg |
Temperature | Operating Temperature: -10°C to 45°C Storage Temperature: -40°C to 70°C |
Humidity | Operating Humidity: 5% to 95% (non-condensing) Storage Humidity: 5% to 95% (non-condensing) |
